NANO Box
NANO BOX UP TO 311 KM OF AUTONOMY
Introduction
The Dongfeng Nano Box arrives to transform the concept of urban electric vehicles. Its technology and design position it as an ideal option to improve mobility in cities in a sustainable way.
Next, we will analyze all its characteristics in depth to understand why it represents a great leap towards the future of transportation.
ACCELERATION
6 SEC 0-50 Km/h
POWER ENGINE
33 KW
SPEED
100 KM/H
Elegant design

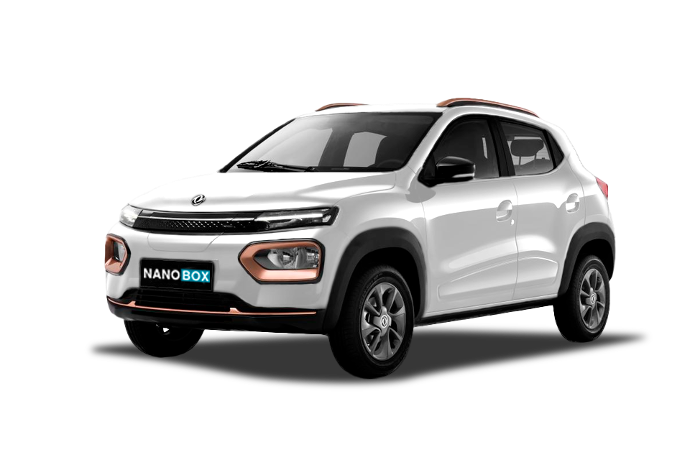

The Nano Box's design focuses on aerodynamics and functionality. Its coupe body and clean lines give it an attractive and modern appearance.
Details such as its closed grille, high-power LED optics and panoramic roof with luggage rails stand out. These enhance your dynamic personality.

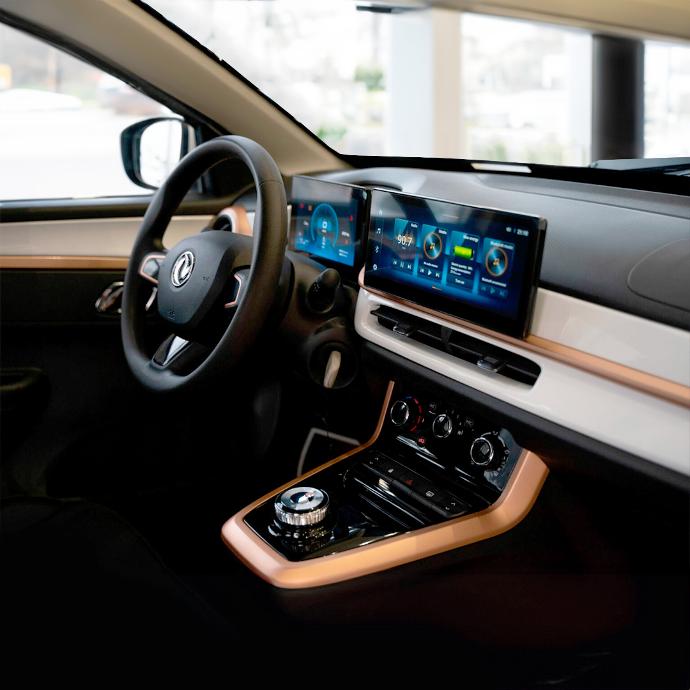

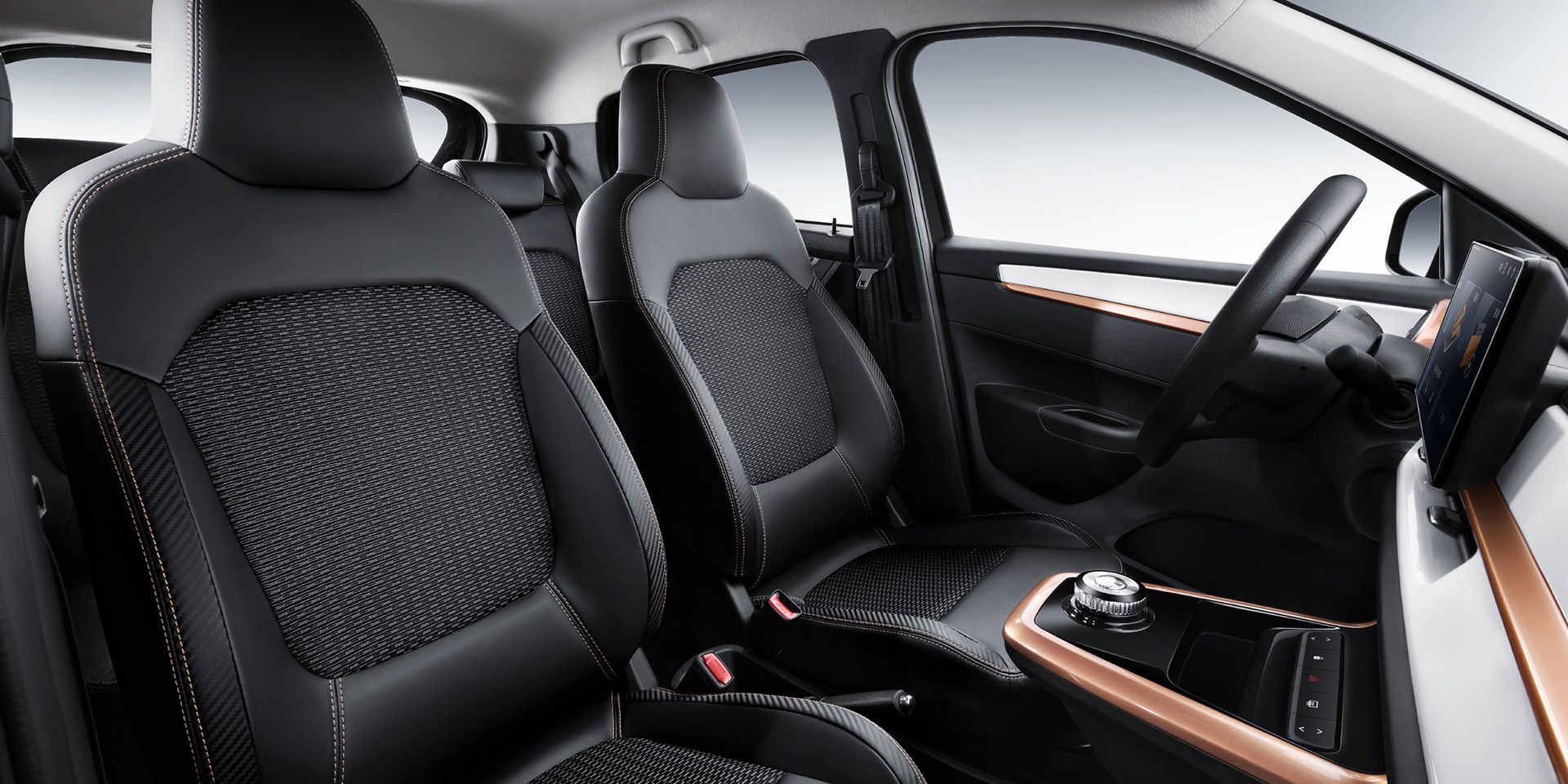

Inside, maintaining the minimalist line, it has black leather seats, a steering wheel with different controls, climate control and a large 10-inch touch screen.
Write one or two paragraphs describing your product or services. To be successful your content needs to be useful to your readers.
Start with the customer – find out what they want and give it to them.
Comfort and technology
Equipped with air conditioning and comfortable seats, it ensures a relaxed trip. Its equipment includes parking camera, cruise control, parking sensors, among others.
The highlight is undoubtedly its infotainment system. Through the multimedia screen, the user can access the browser, Bluetooth connectivity, music and more.
It is also possible to monitor and manage aspects of the car such as charging status or remaining autonomy from an application.
Sustainability
This model is manufactured with a cleaner and more sustainable future in mind. Being pure electric, it does not generate direct carbon dioxide emissions.
In addition, its energy efficiency is enhanced with braking recovery and its solar roof that helps increase its autonomy.
It represents a viable alternative to improve air quality in cities and mitigate climate change thanks to its technology and zero emissions.
Technical specifications

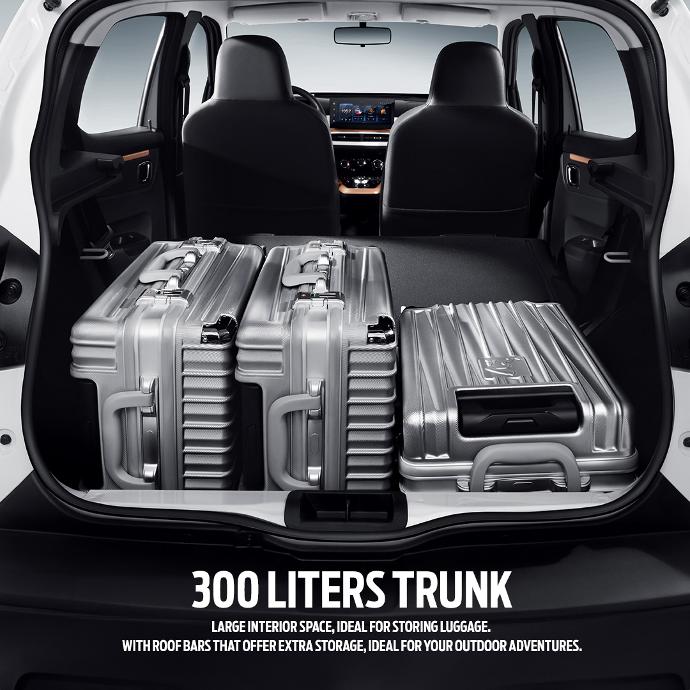

Based on its basic data, its compact but functional size stands out. Measuring 3732mm long, 1579mm wide and 1515mm high, it offers a spacious cabin and 300-1107L of trunk capacity.
Its 2423mm wheelbase guarantees comfort even for all passengers. Weighing only 921kg, it is light and efficient.
Its heart is a 28.9kWh lithium-ion battery that provides a range of up to 351km according to CLTC standard. This dispels concerns about autonomy in daily use.
Its permanent magnet synchronous motor develops 33kW of maximum power and 125Nm of torque, achieving 0 to 50km/h in just 6 seconds.

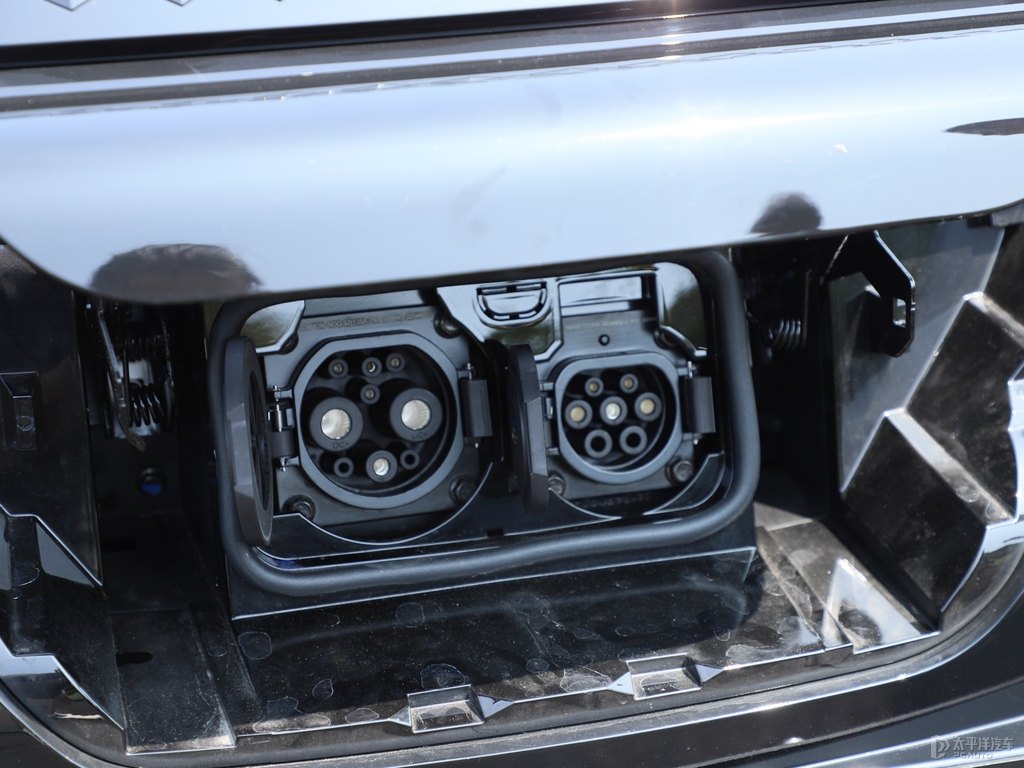

Another strong point is its charging system, either fast at 30 minutes up to 80% using DC or slow at less than 4 hours with AC.
L*W*H (mm.) | 3732*1579*1515 |
WHEELBASE (mm.) | 2423 |
TREAD (FRONT/REAR) (mm) | 1380/1365 |
MINIMUM GROUND CLEARANCE (MM) | 150 |
CURB WEIGHT (KG) | 921 |
LUGGAGE COMPARTMENT VOLUME (L) | 300-1107 |
BATTERY CAPACITY (KWH) | 28,9 |
ENERGY DENSITY OF BATTERY SYSTEM (WH/KG) | 148 |
CLTC COMPREHENSIVE DRIVING RANGE (KM) | 351 |
MAXIMUM POWER OF MOTOR (KW) | 33 |
MAXIMUM TORQUE OF MOTOR (Nm) | 125 |
0~50KM/H ACCELERATION TIME (S) | 6 |
MAXIMUM SPEED (KM/H) | 100 |
DC FAST CHARGING TIME 30 MIN | （25º，30-80% SOC) |
AC SLOW CHARGING TIME ≤4H | （25℃，0-100% SOC) |
ON-BOARD AC CHARGER | 6.6KW |
BRAKE SYSTEM (FRONT/REAR) | VENTILATING DISC TYPE/DRUM TYPE |
PARKING BRAKE SYSTEM | MECHANICAL HAND BRAKE |
TYRE SPECIFICATION | 165/70R14 |
SUSPENSION (FRONT SUSPENSION) | MCPHERSON INDEPENDENT |
SUSPENSION (REAR SUSPENSION) | TORSION BEAM DEPENDENT |
STEERING | EPS ELECTRONIC |
Security
The Nano Box has a reinforced structure that absorbs impacts and various active safety equipment. It has ABS, EBD, double airbag, stability control, 3-point belts and ISOFIX.
It also includes rear parking sensors, a reversing camera, a TPMS tire monitoring system and safety features such as daytime running lights.
